2021 Ford F-150 Steering Rack Safety Recall & Dealer Repair Guide

September 8th, 2026 by

2021 Ford F-150 Steering Gear Safety Recall: Root Cause and Free Dealer Repair at Hawk Ford of Carol Stream

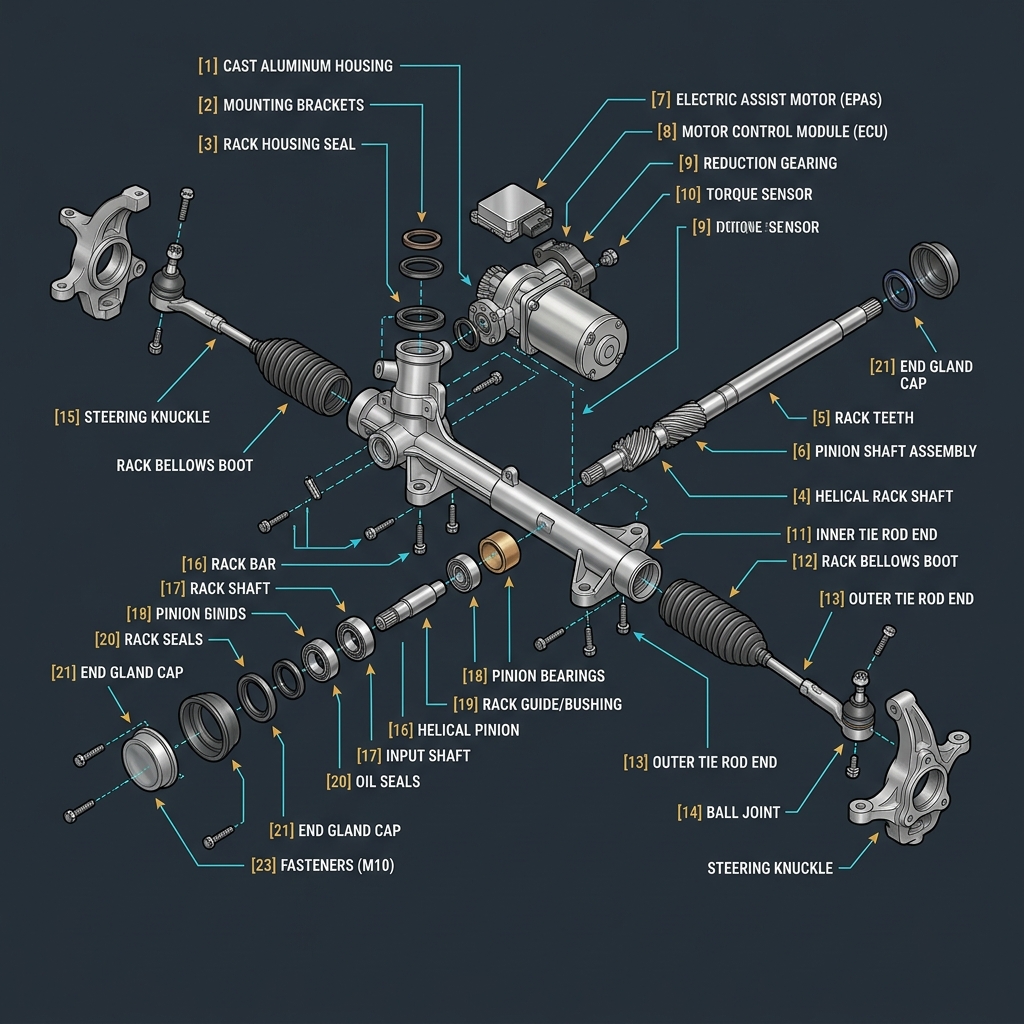

Exploded technical diagram showing labeled parts of an electric power steering rack and pinion assembly. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)
In late 2021, Ford Motor Company issued a critical safety recall affecting select 2021 Ford F-150 pickup trucks regarding a severe defect in the electronic power assist steering (EPAS) system. Designated under NHTSA Campaign Number 21V904 and Ford Recall Code 21S48, this mandatory safety action centers on a precise manufacturing anomaly inside the steering gear assembly. If you own or operate a 2021 F-150 in Carol Stream, Glendale Heights, Bloomingdale, or surrounding DuPage County communities, understanding the exact mechanical nature of this defect and the zero-cost remedy available to you at Get Directions to Hawk Ford of Carol Stream is paramount to your safety on the road.
The root cause of the 2021 F-150 steering rack safety recall stems from an out-of-spec internal gear component within the EPAS rack and pinion housing. Specifically, during component fabrication, select steering gear assemblies were produced with incorrectly machined ball nut threads and gear tooth profiles. Under normal vehicle operation—and particularly during low-speed maneuvers, sharp cornering, or heavy payload towing—these dimensional inaccuracies cause extreme localized friction, leading to gear tooth binding, severe mechanical galling, or complete fracture of internal steering gear teeth. When gear tooth binding or fracture occurs, the driver experiences an immediate, unannounced loss of manual and power-assisted steering control, vastly increasing the risk of a collision.
To safeguard drivers and restore factory operating standards, Ford Motor Company mandated that authorized dealerships perform a total replacement of the defective steering rack and pinion mechanism. As a leading factory-authorized service center in Chicagoland, Hawk Ford of Carol Stream provides complete inspection, removal of the flawed assembly, installation of an updated OEM steering gear assembly, and electronic calibration at absolutely zero cost to vehicle owners. If your truck is impacted, you can immediately Call us at (630) 233-9696 or visit our dealership service department at 175 North Ave, Carol Stream, IL 60188 to schedule your priority recall service.
Whether you utilize your 2021 F-150 as a daily workhorse hauling equipment along North Avenue or as a trusted family commuter navigate Route 64 and I-355 during severe Midwestern winter conditions, maintaining uncompromising steering integrity is vital. The complete remedy involves not merely a quick software patch or superficial adjustment, but a structural overhaul of the primary steering mechanical gear. Below, our master-certified technical team breaks down every technical facet of the defect, warning indicators, recall logistics, and exact step-by-step procedures performed in our state-of-the-art service bays.

What Specific Steering Gear Defect Triggered the 2021 F-150 Rack and Pinion Safety Recall?

To fully appreciate why safety regulators at the National Highway Traffic Safety Administration (NHTSA) and engineers at Ford Motor Company classified this condition as a high-priority safety recall, one must examine the internal mechanics of the modern 14th-generation F-150 steering framework. Modern Ford pickup trucks utilize an advanced Electronic Power Assist Steering (EPAS) assembly. Unlike legacy hydraulic power steering systems that relied on power steering pumps, high-pressure hydraulic lines, and belt-driven pulleys, the EPAS system relies on a high-torque electric motor mounted directly to the steering gear housing. This motor drives a ball nut mechanism via a timing belt, assisting the driver’s input by translating rotational motion from the steering wheel into linear force across the rack gear.
During the manufacturing period for specific 2021 model-year vehicles, a tier-one component supplier experienced severe machining variance during the finishing process of the internal steering gear teeth and ball nut raceways. Consequently, precise mechanical tolerances required for smooth recirculating ball movement were violated. Under specific thermal cycles and mechanical loads—such as turning the steering wheel while stationary, navigating tight parking lots in Carol Stream, or maneuvering heavy trailers—the recirculating balls inside the rack housing encounter severe binding contact against out-of-tolerance gear teeth.

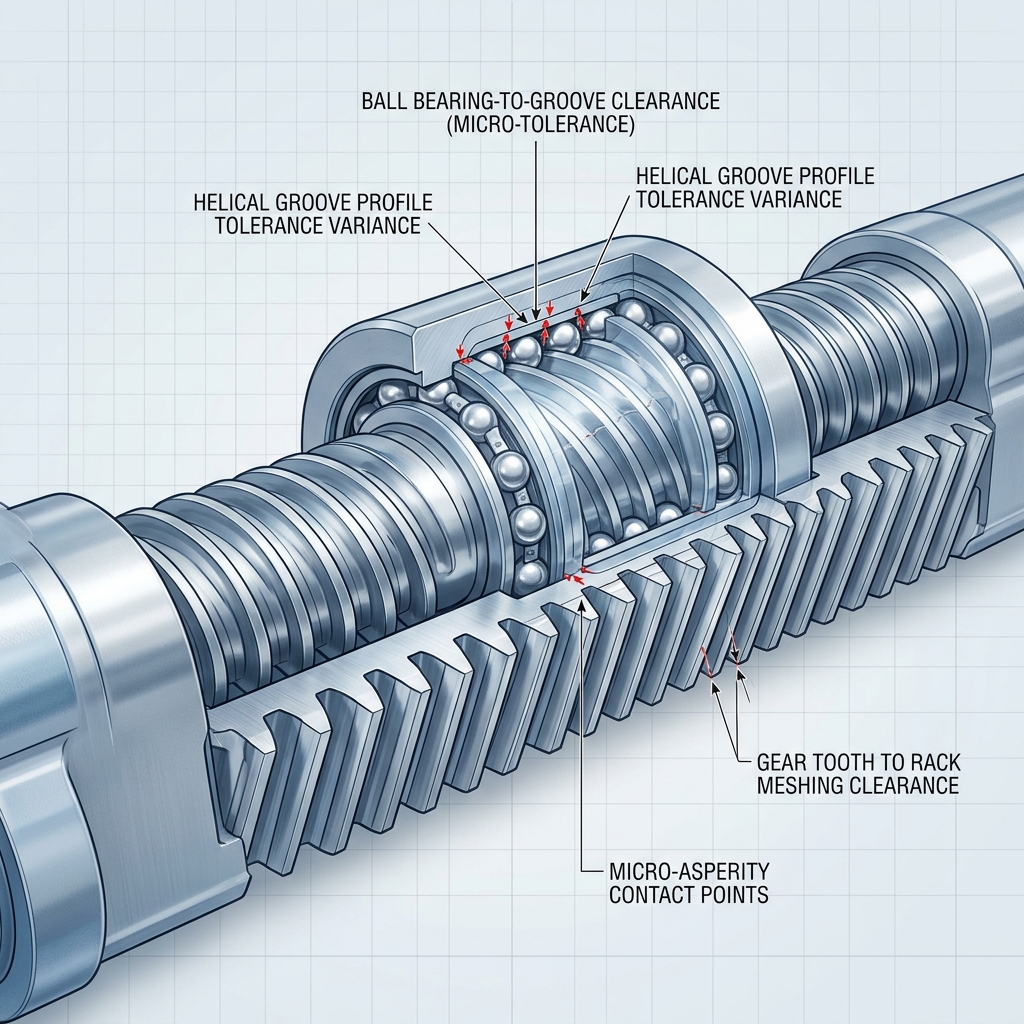

Cutaway technical diagram showing micro-tolerances and contact points in a ball screw and gear rack assembly. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)
This mechanical friction is not simply a matter of harsh operation or power steering noise; it causes extreme localized stress concentrations across the rack teeth. Continuous micro-impacts and stress risers ultimately lead to tooth deformation, surface pitting, micro-fracturing, and eventual catastrophic tooth shear. If an internal tooth shears off inside the closed steering gear housing, the loose metallic debris becomes jammed within the ball nut circuit or pinion teeth mesh. This results in instant physical locking of the steering shaft, rendering the driver completely unable to rotate the steering wheel regardless of manual force applied.
Because an instantaneous loss of directional steering control poses an immediate life-safety hazard to vehicle occupants and surrounding motorist traffic, Ford initiated Recall 21S48 (NHTSA 21V904). Unlike minor component advisories, this manufacturing flaw dictated an uncompromising resolution: replacing the entire steering gear assembly with a redesigned unit possessing fully audited machining tolerances and reinforced internal alloy structures. Owners seeking complete peace of mind can review our New Vehicle Inventory or consult directly with our service specialists to verify if their current vehicle is affected.

Recognizing Symptoms of Steering Gear Binding or EPAS Failure in Your 2021 F-150

While some steering gear failures occur abruptly without prior indication, many 2021 F-150 trucks exhibit clear early physical and electronic warning signs before total steering gear tooth fracture or severe mechanical lockup takes place. Recognizing these warning signs allows DuPage County drivers to take proactive measures before finding themselves in a perilous driving scenario. Below are the primary acoustic, mechanical, and dashboard indicators associated with progressive EPAS rack defect deterioration.

Acoustic Signs: Popping & Grinding

Drivers often report distinct metallic popping, clicking, or low-frequency grinding noises emanating from the front lower axle area when turning the steering wheel. These sounds occur as internal ball bearings pass over damaged, gaulded, or improperly toleranced rack tooth surfaces under load.

Steering Wheel Resistance & Hesitation

A sudden, momentary increase in steering effort—frequently described as a ‘catch’ or ‘notchiness’ during rotation—is a classic symptom of localized tooth binding. Drivers may also notice that the steering wheel fails to return smoothly to the center position after completing a turn.

Dashboard Warnings & System Faults

When the EPAS motor encounters abnormal mechanical resistance from internal binding, the Power Steering Control Module (PSCM) detects excessive current draw. This triggers yellow or red instrument cluster warnings, such as ‘Power Steering Assist Fault’ or ‘Steering Loss – Service Control’.
Crucial Safety Advisory: If you experience a sudden momentary locking sensation or severe mechanical notchiness while driving on local thoroughfares such as Gary Avenue, Geneva Road, or Army Trail Road, pull over to a safe location immediately. Continuing to operate a vehicle exhibiting mechanical steering gear binding drastically increases the probability of complete internal failure. Contact Hawk Ford of Carol Stream service advisors at Call us at (630) 233-9696 right away for immediate roadside guidance.

Safety Recalls vs. Technical Service Bulletins: What It Means for Repair Costs

Vehicle owners frequently confuse Official Safety Recalls with Technical Service Bulletins (TSBs) or Customer Satisfaction Programs. Understanding the regulatory and financial distinctions between these service classifications is essential for every 2021 F-150 owner evaluating maintenance obligations.
Under federal law (the United States National Traffic and Motor Vehicle Safety Act), a Safety Recall is declared when a vehicle manufacturer or NHTSA determines that a specific vehicle design or component creates an unreasonable safety risk or fails to meet mandatory federal safety standards. Because Safety Recall 21S48 addresses a primary steering failure hazard, Ford Motor Company and Hawk Ford of Carol Stream are legally required to repair the defect 100% free of charge, covering all replacement parts, specialized shop labor, fluid renewals, alignment procedures, and electronic calibrations.
Furthermore, safety recall coverage does not expire based on standard factory bumper-to-bumper warranty periods or vehicle mileage limits. Whether your 2021 F-150 has 15,000 miles or 120,000 miles, and regardless of whether you are the original buyer or a second-hand owner who purchased through our Used Vehicle Inventory or CPO Inventory, recall repairs remain entirely free at our Carol Stream dealership.

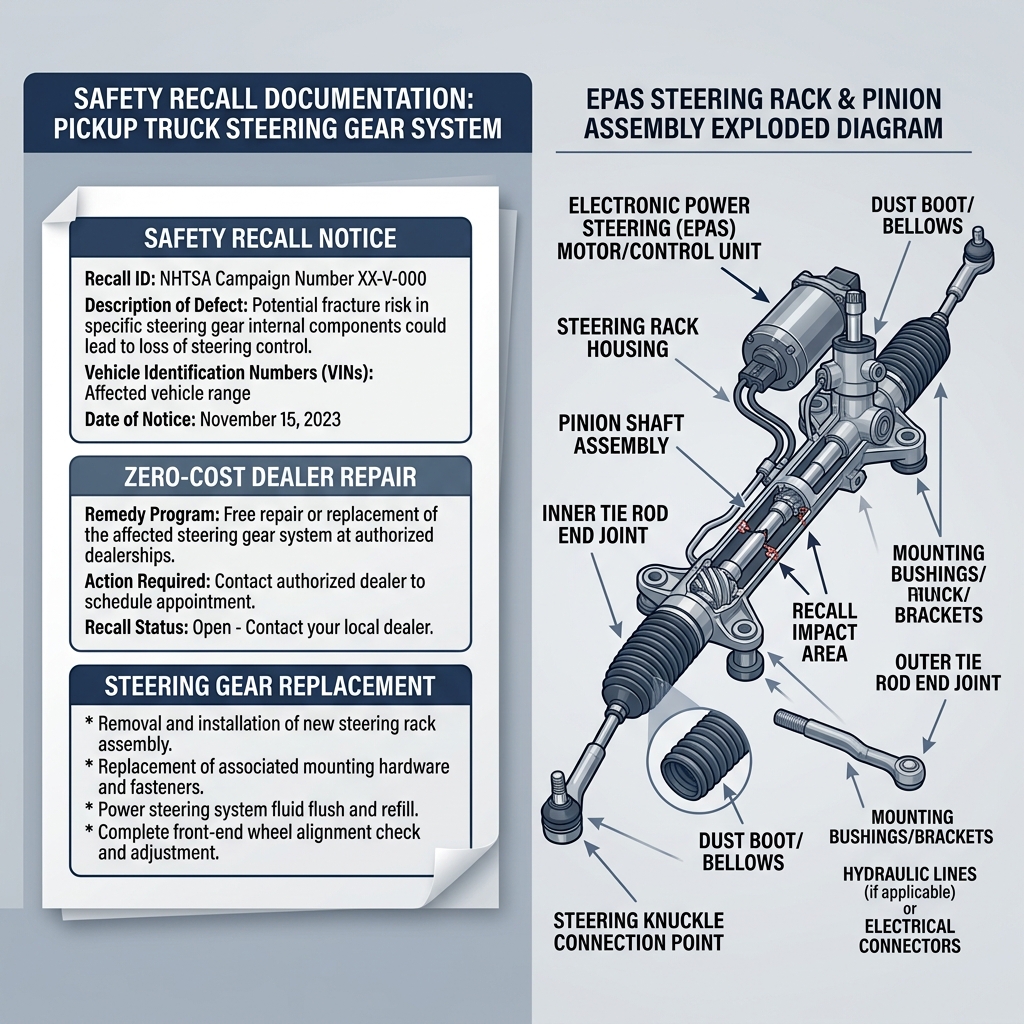

Safety recall documentation and exploded diagram of an EPAS pickup truck steering rack and pinion assembly. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)
In contrast, a Technical Service Bulletin (TSB) is an internal technical communication provided by Ford to dealer service technicians. TSBs provide recommended diagnostic procedures and repair instructions for minor operational annoyances, non-safety component wear, or software updates (such as minor steering wheel nibble, slight electronic assist drift, or minor harness squeaks). Unlike safety recalls, TSB repairs are only covered under active new vehicle factory warranties. Once a truck passes its 3-year/36,000-mile bumper-to-bumper threshold, TSB fixes generally require out-of-pocket payment from the owner.

The ‘Do Not Drive’ Advisory and Immediate Safety Protocols for Affected F-150 Owners

For specific high-risk VIN production sub-batches identified within NHTSA Campaign 21V904, Ford Motor Company issued explicit ‘Stop-Drive’ / ‘Do Not Drive’ advisories. This stringent recommendation is reserved exclusively for safety defects where component failure is deemed imminent and where driving the vehicle poses severe, immediate life safety hazards to vehicle occupants and surrounding traffic.
If your 2021 F-150 falls within a designated Stop-Drive window, you should under no circumstances attempt to drive the vehicle to our dealership or anywhere else. Driving a truck with a compromised steering rack ball nut or fractured gear teeth can result in sudden, total mechanical jam without warning. If this locking occurs while navigating high-speed arterial roads like North Avenue (Route 64), Schmale Road, or Swift Road, severe loss of control is virtually inevitable.
To protect our customers in Carol Stream, Glendale Heights, Bloomingdale, and surrounding suburbs, Hawk Ford of Carol Stream collaborates directly with Ford Roadside Assistance to arrange complimentary flatbed towing services. Our professional transport carriers will pick up your affected 2021 F-150 directly from your residential driveway, workplace parking lot, or job site and transport it safely to our service center at 175 North Ave, Carol Stream, IL 60188. Owners requiring immediate flatbed transport arrangements should Call us at (630) 233-9696 to initiate priority towing protocols.

Step-by-Step Dealer Remedy: How Certified Technicians Replace the F-150 Steering Rack

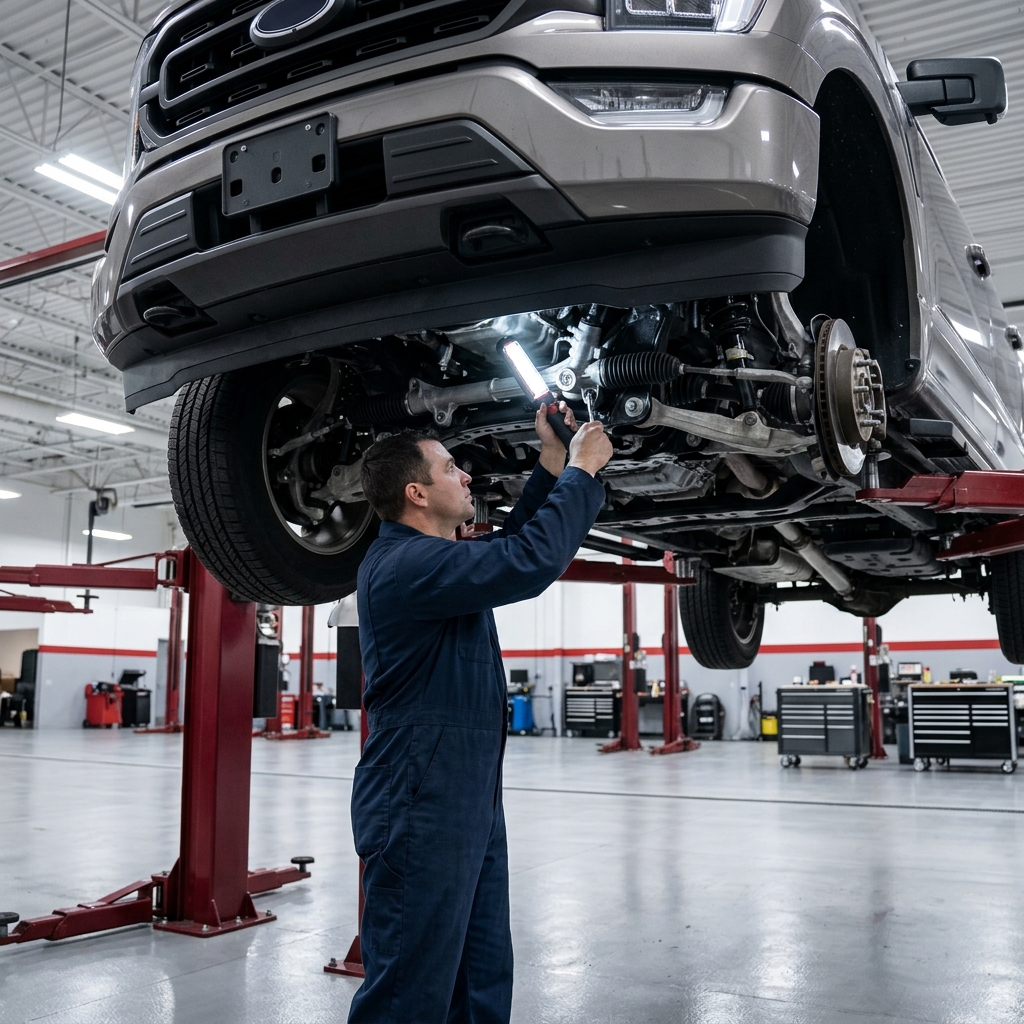

Auto mechanic holding a work light while inspecting the front suspension undercarriage of a truck raised on a lift. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)
At Hawk Ford of Carol Stream, steering gear recall replacements are executed strictly by Senior Master Factory-Trained Technicians who adhere to rigorous Ford Technical Service Procedures. Replacing an integrated EPAS steering gear on a modern military-grade aluminum-alloy F-150 is an intricate mechanical and electronic operation that requires specialized heavy-duty lifts, precision torque angle meters, and Ford Diagnostic & Repair System (FDRS) software suites.
1. System Verification & Vehicle Disassembly: The technician connects the FDRS terminal to clear existing PSCM error codes and verifies the vehicle’s specific steering gear part batch. The truck is elevated on a heavy-duty hoist, front road wheels are removed, and front skid plates and lower crossmember splash shields are detached to gain full access to the steering gear subframe.
2. Disconnection & Mechanical Extraction: Outer tie rod ends are separated from the steering knuckles using non-destructive pullers. The intermediate steering shaft bolt is removed, isolating the upper column. Main high-amperage electrical harnesses connecting the power supply and CAN-bus control modules to the EPAS unit are safely unlocked. Subframe mounting bolts are removed, allowing the original defective rack and pinion assembly to be carefully lowered out of the chassis.
3. Revised OEM Assembly Installation: A newly manufactured, fully audited OEM steering rack assembly (utilizing updated part prefix number series ML3Z) is positioned into place. Fasteners are torqued to precise factory foot-pound specifications plus required rotation angle degrees using calibrated digital torque wrenches.
4. Harness Reconnection & Module Flash: High-amperage electrical connections are treated with anti-corrosion dielectric compound and securely latched. Connecting to FDRS, the technician flashes the Power Steering Control Module (PSCM) with the latest Ford calibration software, performing steering angle sensor zero-point learning routines and soft-stop end-position initialization.

Navigating the Recall Process at Hawk Ford of Carol Stream: From VIN Verification to Service Scheduling

We understand that auto safety recalls can feel overwhelming or inconvenient. Hawk Ford of Carol Stream has streamlined the recall experience into three straightforward, hassle-free steps designed to minimize disruption to your busy work schedule.

Step 1: Locate Your 17-Digit VIN

Find your vehicle’s 17-digit Vehicle Identification Number (VIN) stamped on the driver’s side dashboard visible through the windshield, printed on the driver’s door jamb safety sticker, or listed on your vehicle registration and insurance cards.

Step 2: Contact Our Service Center

Reach out to Hawk Ford of Carol Stream by phone at Call us at (630) 233-9696. Our recall coordinators will immediately cross-reference your VIN in the OASIS network to confirm active recall campaign status.

Step 3: Reserve Allocation & Appointment

If your VIN requires a replacement steering gear assembly, our Parts Center reserves an updated OEM assembly directly for your build. You can then reserve a convenient appointment using our Schedule Service Now link.

Rental Vehicles, Shuttle Service, and Mobility Solutions for Suburban Chicago Drivers

At Hawk Ford of Carol Stream, we recognize that your 2021 F-150 is essential to your day-to-day productivity, family transportation, and business operations across Carol Stream, Glendale Heights, Bloomingdale, and West Chicago. Leaving your truck at a service center for a major steering gear replacement should not halt your daily life.
To ensure seamless continuous mobility while our master technicians complete recall 21S48, Hawk Ford offers comprehensive transportation support packages:
• Complimentary Factory Loaner Vehicles: For qualifying recall procedures requiring extended shop duration, we provide clean, late-model Ford loaner vehicles so you stay on the move effortlessly. • Local Courtesy Shuttle Service: Our dedicated dealership shuttles provide timely rides to and from your home, office, or local commuter rail stations along the Metra UP-W line. • Flexible Key Drop-Off & Pickup: Early-bird and late-night secure key drop boxes allow you to drop off your F-150 before morning rush hour or collect your vehicle after normal business hours.
Silver SUV, blue SUV, and dark gray pickup truck parked side by side in a dealership lot near autumn trees. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)
If you are considering evaluating an updated model while your truck is in service, our friendly sales advisors can also assist you with exploring our fresh New Vehicle Inventory or arranging a test drive. Speak to our customer care team when booking your recall service to reserve your loaner vehicle in advance.

Why Professional Wheel Alignment and Calibration Are Critical Post-Steering Rack Replacement

Replacing a steering rack and pinion assembly is only half the battle. Because the steering rack directly controls outer tie rod geometry, unbolting and replacing the housing alters front-end wheel toe angles, caster parameters, and camber alignment settings. Failing to perform a precise, computer-guided four-wheel alignment following rack installation leads to severe consequences: accelerated inner shoulder tire wear, crooked steering wheel alignment while driving straight, and erratic high-speed vehicle tracking.
Moreover, 2021 F-150 models are equipped with sophisticated Driver Assist Technology under the Ford Co-Pilot360 suite (including Lane-Keeping Assist, Pro Trailer Backup Assist, and Adaptive Cruise Control with Stop-and-Go). These electronic systems rely heavily on precision input from the Steering Angle Sensor (SAS) housed inside the steering column and EPAS module. If the mechanical wheel alignment does not perfectly match the electronic zero-point calibration of the SAS, the vehicle’s lane-keeping cameras will experience sensor mismatch errors, disabling active safety features.
Every steering rack recall repair at Hawk Ford of Carol Stream automatically includes a full computerized laser wheel alignment on state-of-the-art Hunter alignment equipment, followed by a digital recalibration of the Steering Angle Sensor and Co-Pilot360 optical sensors. This guarantees that your truck drives straight, handles predictably over rough Chicagoland pavement, and maintains factory active safety protection.

Additional Steering Service Bulletins and Maintenance Guidelines for F-150 Owners in Glendale Heights and Bloomingdale

In addition to mandatory safety recall 21S48, Ford Motor Company periodically issues Technical Service Bulletins (TSBs) and Special Field Actions aimed at refining steering feel, updating module software, and extending component life. During your recall service visit, Hawk Ford technicians perform a comprehensive multi-point inspection to identify any supplemental steering updates applicable to your vehicle.



Campaign Identification Action Type Affected Component / System Customer Out-of-Pocket Cost
NHTSA 21V904 / Ford 21S48 Mandatory Safety Recall EPAS Steering Gear Ball Nut & Rack Tooth Assembly $0 (100% Free – Covered by Ford)
TSB 21-2384 Technical Service Bulletin PSCM Software Reflash for Nibble / Wander Assist $0 under Factory Warranty / Varies Out-of-Warranty
TSB 22-2109 Technical Service Bulletin Intermediate Steering Shaft Upper Coupler Lubrication $0 under Factory Warranty / Varies Out-of-Warranty
Special Field Action 22M04 Extended Coverage EPAS Electrical Connector Anti-Corrosion Sealing $0 (Extended Coverage Terms Apply)



Midwestern Winter Corrosion Protection: Driving across Carol Stream and DuPage County during fall and winter exposes chassis components to heavy road salt, magnesium chloride, and slush. During steering rack replacement, our technicians inspect all lower wire harnesses, weather-seal boot clamps, and ground straps, applying factory-approved dielectric corrosion shields to prevent moisture intrusion into the sensitive EPAS electrical connectors.

Checking Your VIN for Open Ford Safety Recalls: Tools and Official Resources

Verifying whether your 2021 F-150 has an open safety recall takes less than two minutes. Vehicle owners can utilize several official online databases to inspect their vehicle status at any time:
• NHTSA Recall Search Portal: Visit official government portals at nhtsa.gov/recalls and enter your 17-digit VIN to instantly retrieve federal safety records. • Ford Owner Recall Center: Access Ford.com/support/recalls to view detailed Ford Motor Company service action notices, software updates, and campaign descriptions. • Hawk Ford Direct VIN Lookup: Contact our Carol Stream service department directly by phone or via our online scheduling form. Our service advisors will run a real-time OASIS report covering all active safety recalls, TSBs, and warranty coverages.
Important Note for Second Owners: If you purchased your 2021 F-150 as a pre-owned vehicle through a private sale or non-Ford dealership, state registration records may not have updated quickly enough for Ford factory recall notices to reach your mailbox. Running a VIN check directly with Hawk Ford ensures that safety updates are never overlooked.
If you are considering trading in your vehicle or estimating its pre-owned market value, completing all open safety recall repairs is crucial. Learn more about your vehicle’s value using our Value Your Trade portal today.

Long-Term Steering Reliability and Vehicle Value Protection for Your 2021 F-150

Beyond protecting driver safety, having mandatory recall repairs performed at a factory-authorized dealership plays a vital role in protecting your truck’s long-term resale value and equity. Major vehicle history reporting services such as CARFAX and AutoCheck actively pull recall compliance data directly from official manufacturer databases.
An unaddressed safety recall flagged on a vehicle history report drastically lowers private party trade-in values, deters potential buyers, and can even prevent a vehicle from qualifying for certified pre-owned programs in the future. Once Hawk Ford of Carol Stream completes Recall 21S48 on your 2021 F-150, our service management team uploads the official completion records directly to Ford’s global database, permanently clearing the open recall flag on all public CARFAX records.
Furthermore, relying on factory-authorized repair techniques and genuine Ford OEM replacement components guarantees that all steering gear sub-assemblies integrate flawlessly with existing driveline, electrical, and chassis structures. This preserves the rugged durability, towing capacity, and smooth driving dynamics that make the Ford F-150 America’s favorite pickup truck.

Schedule Your Complimentary 2021 F-150 Steering Gear Recall Inspection at Hawk Ford of Carol Stream

Don’t compromise your safety or peace of mind on the road. If you drive a 2021 Ford F-150 in Carol Stream, Glendale Heights, Bloomingdale, or nearby DuPage County communities, let the certified service specialists at Hawk Ford of Carol Stream resolve your steering gear safety recall quickly, professionally, and entirely free of charge.
Visit our dealership service center at 175 North Ave, Carol Stream, IL 60188, or contact our service advisors directly by phone at Call us at (630) 233-9696. You can also click below to schedule your appointment online or get interactive driving directions to our service center.

}
